Finite lifespan expires the history that durability should replay
Rule 6 · applies to the publisher · Back to all rules
Breaks a guarantee. Stored samples can expire before a late joiner arrives, so there is nothing left to replay.
If you set Durability = TRANSIENT_LOCAL or stronger together with Lifespan set to a finite duration
Breaks a guarantee
- Settings involved: Lifespan and Durability
- What QoS Guard checks:
[DURABL ≥ TRAN_LOCAL] ∧ [LFSPAN.duration ≠ ∞]
Example
A latched config topic has Lifespan 2 s. A node that joins 3 s later receives nothing, because the retained sample already expired.
How to fix it
Use an infinite Lifespan, or one longer than your worst-case late-join gap, when you rely on durability for late joiners.
Why this rule is flagged
What the DDS specification says
The DDS specification does not settle this case on its own, so the rule rests on direct measurement.
What the engine source code shows
This page grounds the rule in the measurement below rather than a separate source trace.
What the measurements show
| Item | Value |
|---|---|
| Dataset | Download CSV |
| Fixed QoS setting | RELIAB = RELIABLE, DURABL = TRANSIENT_LOCAL |
| Tested variable | LIFESPAN.duration |
| Tested values | LIFESPAN.duration ∈ {-1 ms, 100 ms, 150 ms, 200 ms, 300 ms, 450 ms, 600 ms} |
| Rule-relevant case | finite LIFESPAN.duration under DURABL = TRANSIENT_LOCAL |
| Tested engines / versions | Fast DDS 2.14.6 (Jazzy), Cyclone DDS 0.10.5 |
| Network setting | RTT = 50 ms, loss ∈ {0%, 20%}, PP = 10 ms, message size = 1024 B |
Measurement result

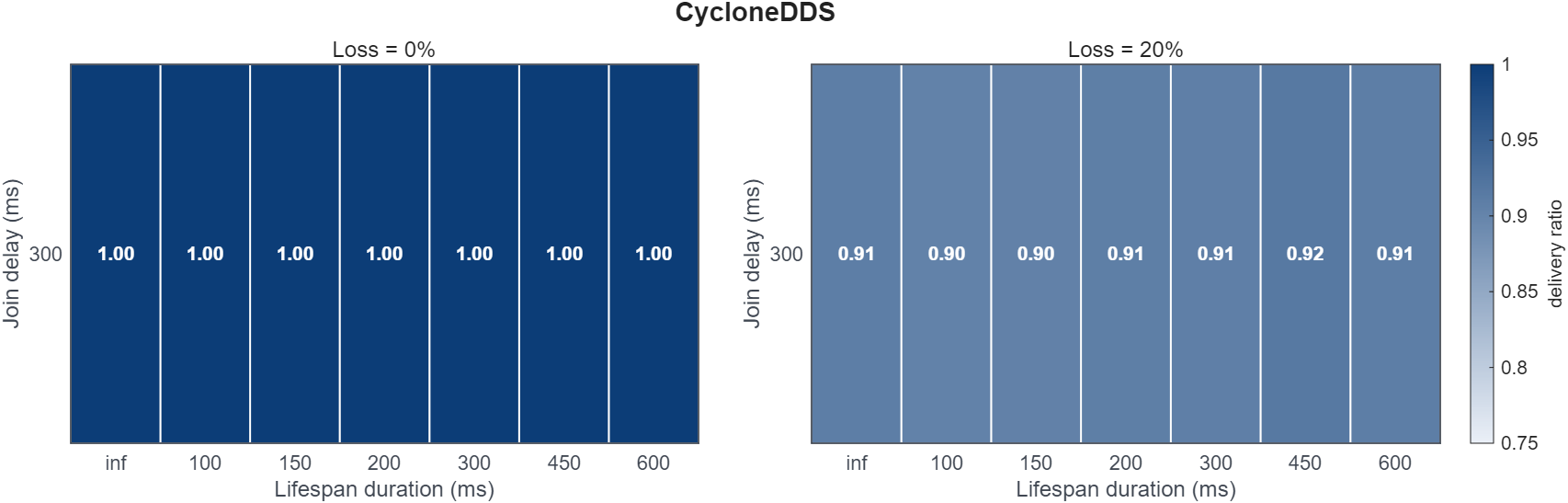

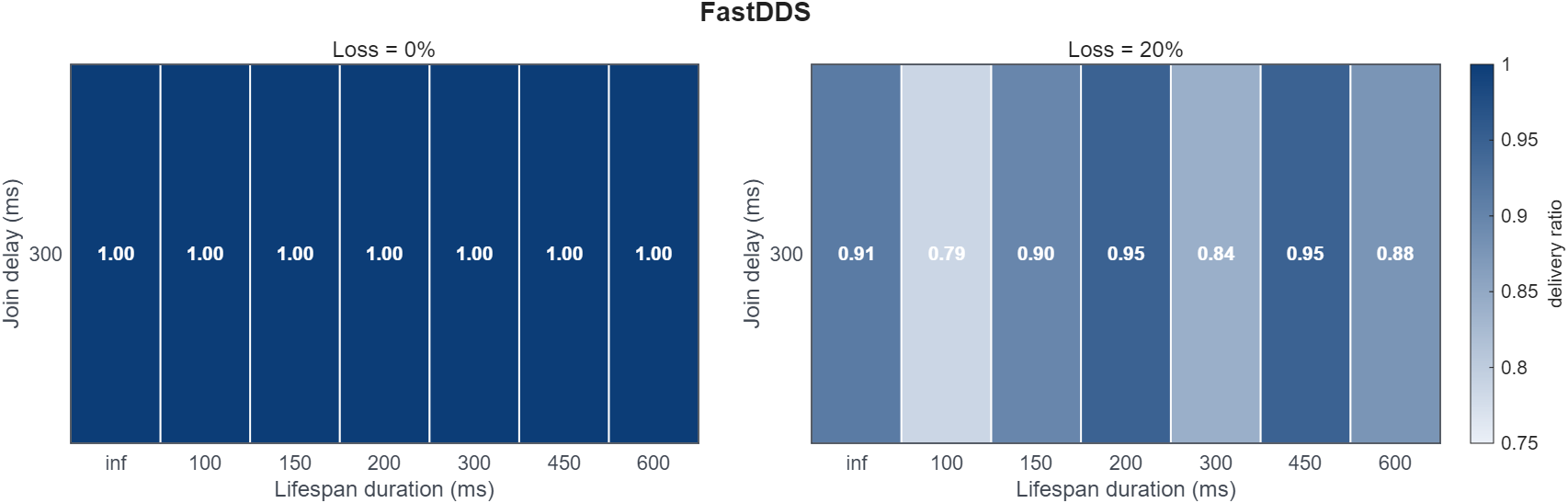

The heatmaps show average delivery ratio under DURABL = TRANSIENT_LOCAL across the tested lifespan values.
