Exclusive ownership with no deadline to trigger failover

Rule 10 · applies to the subscriber · Back to all rules

Breaks a guarantee. With no deadline, a silent owner is never detected, so ownership never fails over to the backup writer.

If you set Ownership = EXCLUSIVE together with Deadline period = infinite

Breaks a guarantee

• Settings involved: Deadline and Ownership
• What QoS Guard checks: [OWNST = EXCLUSIVE] ∧ [DEADLN.period = ∞]

Example

Primary and backup sensor writers use EXCLUSIVE ownership with an infinite deadline. When the primary stalls, the reader keeps waiting instead of switching to the backup.

How to fix it

Set a finite Deadline period so a missed deadline can release ownership and let the backup writer take over.

Why this rule is flagged

What the DDS specification says

This page settles the rule through the engine's source trace and the measured failover below rather than a standalone specification clause.

---

What the engine source code shows

Exclusive ownership failover is connected to deadline-missed handling in both implementations. In Fast DDS, deadline_missed() clears the current owner and triggers owner re-selection. In Cyclone DDS, the deadline-missed callback clears wr_iid_islive, which is then used by the exclusive-ownership admission logic.

Fast DDS implementation evidence

// deadline_missed(): owner clear and re-selection
void deadline_missed()
{
    if (c_Guid_Unknown != current_owner.first)
    {
        if (alive_writers.remove_if([&](const WriterOwnership& item)
        { return item.first == current_owner.first; }))
        {
            current_owner.second = 0;
            current_owner.first  = fastrtps::rtps::c_Guid_Unknown;

            if (ALIVE_INSTANCE_STATE == instance_state)
            {
                update_owner();
            }
        }
    }
}

Cyclone DDS implementation evidence

// deadline_missed_cb clears the live-owner marker
// dds_rhc_default.c:543
inst->wr_iid_islive = 0;

// exclusive ownership checks the same owner-live marker
// dds_rhc_default.c:1041
if (rhc->exclusive_ownership &&
    inst->wr_iid_islive &&
    inst->wr_iid != wrinfo->iid)
{
    ...
}

The source trace shows that deadline-missed handling can clear the current ownership state in both engines.

---

What the measurements show

Item	Value
Dataset	Download CSV
Fixed QoS setting	OWNST = EXCLUSIVE
Tested variable	DEADLN.period, high_action
Tested values	DEADLN.period ∈ {-1 ms, 100 ms, 300 ms}, high_action ∈ {stop, delete}
Rule-relevant case	OWNST = EXCLUSIVE, DEADLN.period = -1 ms
Tested engines / versions	Fast DDS 2.6.11 (Humble), Fast DDS 2.14.6 (Jazzy), Cyclone DDS 0.10.5
Network setting	RTT = 1 ms, loss = 0%, PP = 50 ms, message size = 1024 B

Engine	Tested setting	Observed behavior
Fast DDS 2.6.11 (Humble)	OWNST = EXCLUSIVE, DEADLN.period ∈ {-1 ms, 100 ms, 300 ms}, high_action ∈ {stop, delete}	Profile accepted, matched, and delivered;
Fast DDS 2.14.6 (Jazzy)	OWNST = EXCLUSIVE, DEADLN.period ∈ {-1 ms, 100 ms, 300 ms}, high_action ∈ {stop, delete}	Profile accepted, matched, and delivered; ownership failover observed with average latency around 252 ms
Cyclone DDS 0.10.5	OWNST = EXCLUSIVE, DEADLN.period ∈ {-1 ms, 100 ms, 300 ms}, high_action ∈ {stop, delete}	Profile accepted, matched, and delivered; ownership failover observed with average latency around 45 ms

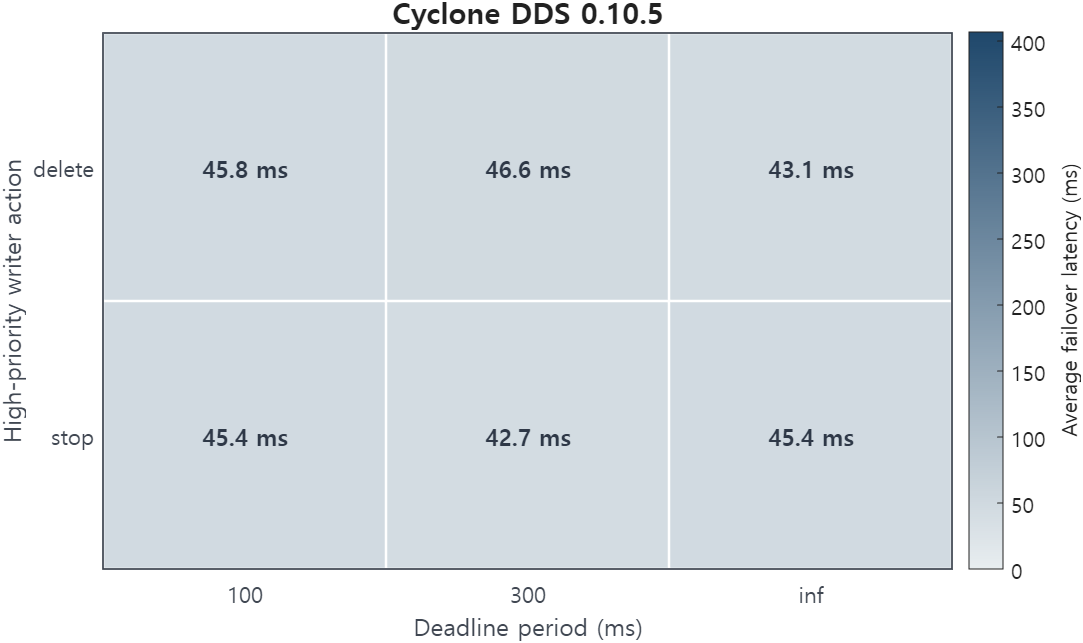

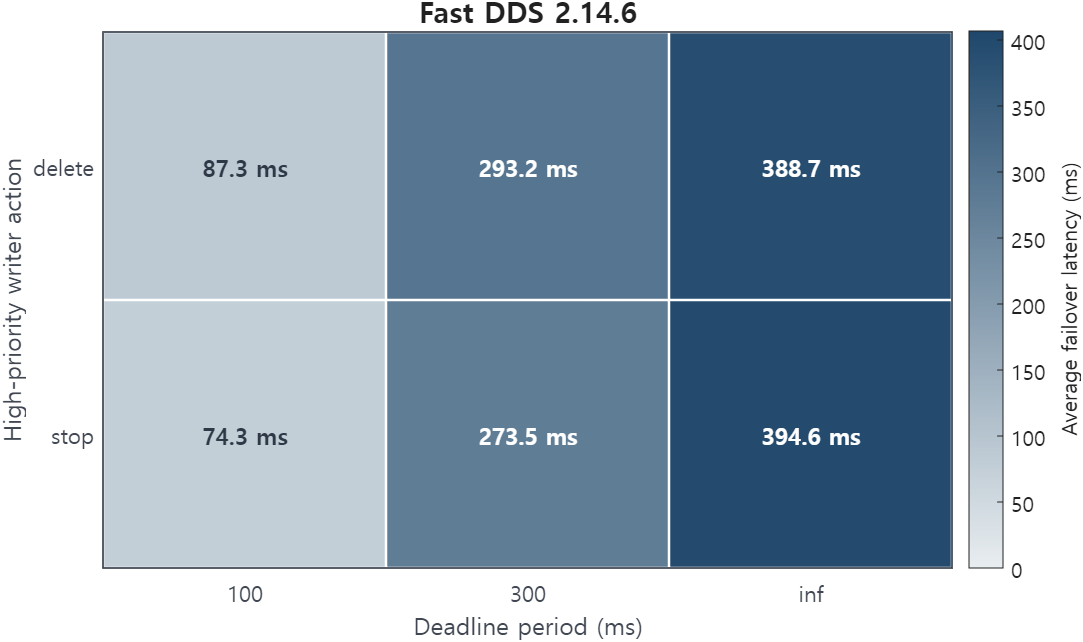

The heatmaps show that ownership failover occurred in all tested cases; Cyclone DDS failed over consistently around 45 ms, while Fast DDS failover latency increased with the deadline period and was highest under the infinite-deadline setting.
