Reliable history too shallow for the round-trip
Rule 31 · applies to the publisher · Back to all rules
Breaks a guarantee. Under delay and loss the writer overwrites samples before they are acknowledged, so reliable delivery collapses and messages are dropped.
- Settings involved: History and Reliability
- What QoS Guard checks:
[RELIABLE] ∧ [KEEP_LAST] ∧ [HIST.depth < ⌈2×RTT/PP⌉+1]
Example
At 100 ms RTT and a 20 ms publish period you need depth about 11, but depth is 5. Delivery falls off a cliff under 20% loss.
How to fix it
Size KEEP_LAST depth to at least ceil(2 x RTT / PP) + 1, or use KEEP_ALL with adequate resource limits.
Why this rule is flagged
What the DDS specification says
The DDS specification does not settle this case on its own, so the rule rests on direct measurement.
What the engine source code shows
The behavior here does not depend on a specific engine's implementation, so the rule follows from the measurements.
What the measurements show
| Item | Value |
|---|---|
| Dataset | Download CSV |
| Fixed QoS setting | RELIAB = RELIABLE, HIST.kind = KEEP_LAST |
| Tested variable | HIST.depth, RTT |
| Tested values | HIST.depth ∈ {1, 2, 3, 4, 5, 6, 8, 10, 12}, RTT ∈ {10 ms, 50 ms, 100 ms} |
| Rule boundary | HIST.depth < ceil(2 × RTT / PP) + 1, with PP = 20 ms |
| Boundary values | RTT = 10 ms → threshold = 2, RTT = 50 ms → threshold = 6, RTT = 100 ms → threshold = 11 |
| Tested engines / versions | Fast DDS 2.14.6 (Jazzy), Cyclone DDS 0.10.5 |
| Network setting | RTT ∈ {10 ms, 50 ms, 100 ms}, loss ∈ {0%, 20%}, PP = 20 ms, message size = 1024 B |
Measurement result

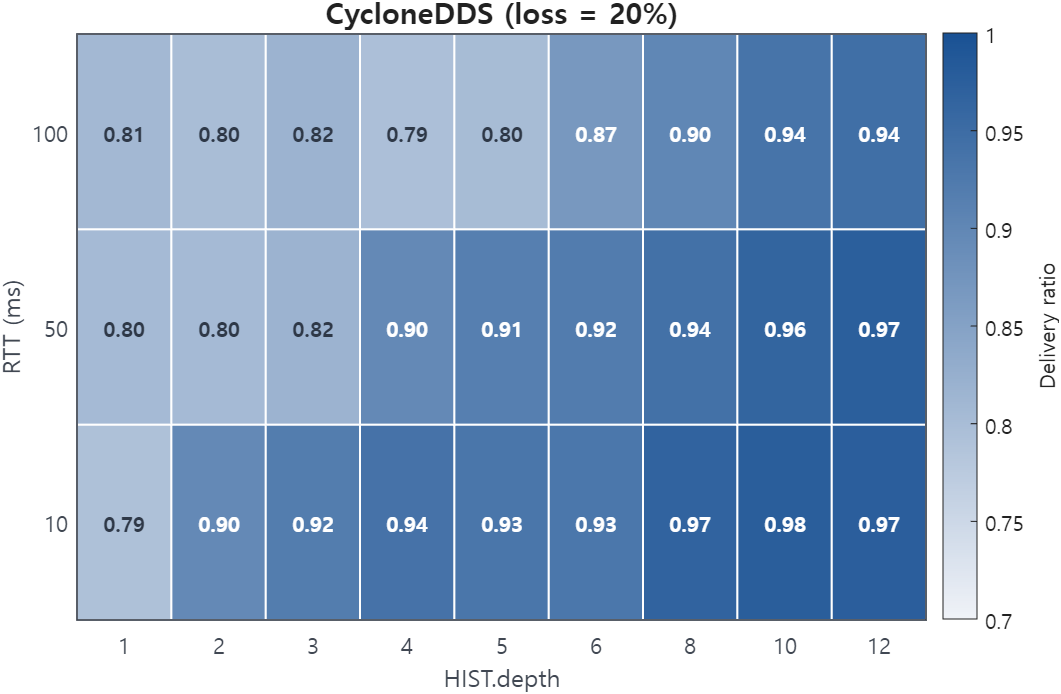

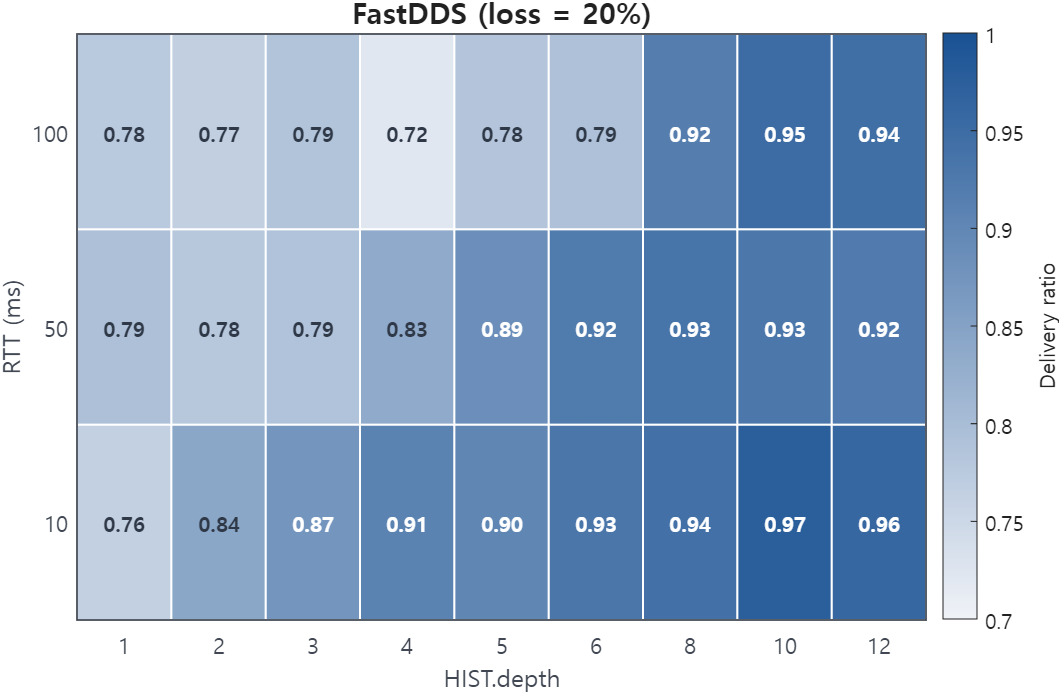

The heatmaps show average delivery ratio across tested HIST.depth values under loss = 20%; the rule boundary is computed as ceil(2 × RTT / PP) + 1.
