This page describes the QoS dependency rules derived from Empirical analysis and experimental results. These rules focus on runtime performance, network conditions (e.g., RTT), and timing-critical dependencies that were validated through systematic testing.

Stage 1

Intra-entity Dependency Validation

6 LFSPAN → DURABL Functional
[DURABL ≥ TRAN_LOCAL] ∧ [LFSPAN.duration > 0]
Entity Pub
Basis EMP

Stage 3

Timing-based Dependency Validation

31 HIST → RELIAB Functional
[RELIABLE] ∧ [HIST.kind = KEEP_LAST] ∧ [HIST.depth < ⌈ 2 × RTT/PP ⌉ + 1]
Entity Pub
Basis EMP
32 RESLIM → RELIAB Functional
[RELIABLE] ∧ [HIST.kind = KEEP_ALL] ∧ [RESLIM.mpi < ⌈ 2 × RTT/PP ⌉ + 1]
Entity Pub
Basis EMP
33 LFSPAN → RELIAB Functional
[RELIABLE] ∧ [LFSPAN.duration < PP + 2 × RTT]
Entity Pub
Basis EMP
35 RELIAB → DEADLN Functional
[DEADLN.period > 0] ∧ [RELIAB = BEST_EFFORT]
Entity Sub
Basis EMP
36 LIVENS → DEADLN Functional
[DEADLN.period > 0] ∧ [LIVENS.lease < DEADLN.period]
Entity Sub
Basis EMP
37 HIST → DURABL Operational
[DURABL ≥ TRAN_LOCAL] ∧ [HIST.kind = KEEP_ALL] ∧ [RESLIM.mpi ≥ default]
Entity Pub
Basis EMP
38 DEADLN → OWNST Operational
[OWNST = EXCLUSIVE] ∧ [DEADLN.period < PP + 2 × RTT]
Entity Sub
Basis EMP
39 LIVENS → OWNST Operational
[OWNST = EXCLUSIVE] ∧ [LIVENS.lease < PP + 2 × RTT]
Entity Sub
Basis EMP

Notation Summary

  • mpi: max_samples_per_instance
  • PP: Publish Period
  • RTT: Round Trip Time

Experimental Evidence Details

Rule 6

Validates why Durability (Transient Local) requires a non-zero Lifespan to provide late-joining data.

1. Experimental Setup

  • Publisher: Durability = TRANSIENT_LOCAL, Lifespan = 50ms
  • Subscriber 1 (Existing): Launched before Publisher.
  • Subscriber 2 (Late-joiner): Launched after Publisher finishes sending 1,000 samples.
  • Total Samples Sent: 1,000

2. Test Scenario

  1. Launch Subscriber 1 to monitor live data.
  2. Launch Publisher and transmit 1,000 samples (Total time taken > 50ms).
  3. Confirm Subscriber 1 received all 1,000 samples.
  4. Launch Subscriber 2 (Late-joiner) to retrieve historical data from the Publisher's buffer.

3. Experimental Observation

Entity Expected Received Actual Received Status
Subscriber 1 (Live) 1,000 1,000 ✅ Success
Subscriber 2 (Late) 1,000 0 ❌ Data Expired

4. Empirical Conclusion

Even though TRANSIENT_LOCAL is set to store data for late-joiners, the Lifespan (50ms) caused all buffered samples to be purged from the Publisher's queue before Subscriber 2 could connect.

Rule 31

Justifies the minimum History Depth required to prevent data loss in Reliable communication under network delay and loss.

1. Experimental Setup

  • QoS Profile: Reliability = RELIABLE, History Kind = KEEP_LAST
  • Network Condition (Loss): 5% Packet Loss (Simulated via tc)
  • Network Condition (Delay): 100ms to 500ms RTT (Round Trip Time)
  • Publication Period (PP): 100ms (10Hz)
  • Variable: History Depth (\(1 \sim N\))

2. Test Scenario

  1. Set the network packet loss to 5% and RTT to a range of 100ms to 500ms.
  2. Transmit 1,000 samples from Publisher to Subscriber.
  3. Decrease the History Depth incrementally for each test run.

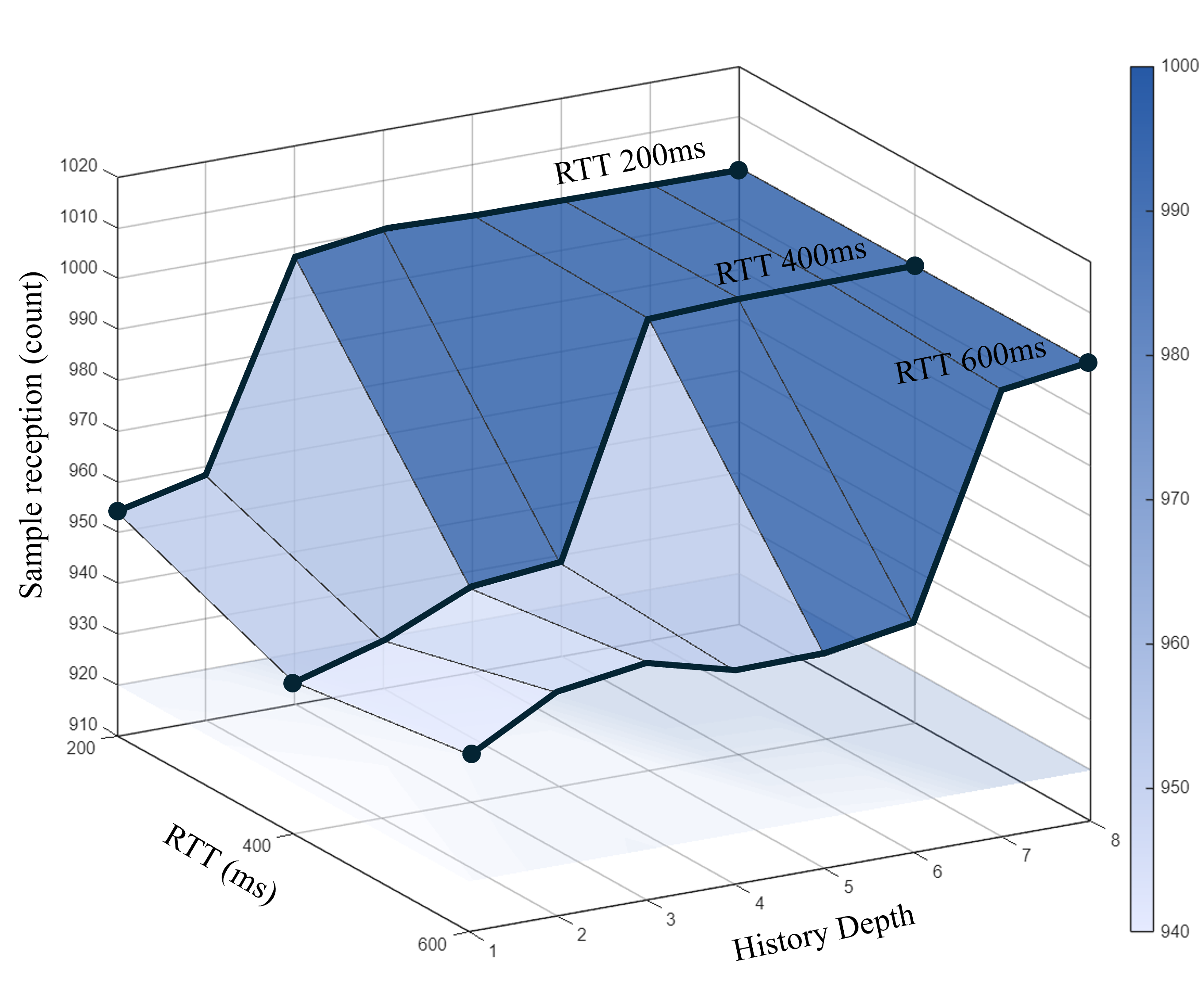

3. Experimental Observation

4. Empirical Conclusion

In a lossy network (5% loss), a Reliable connection requires retransmission of lost packets. If the History Depth is smaller than the number of samples sent during one RTT, the buffer is overwritten before a retransmission can be requested.

Rule 32

Justifies the minimum Resource Limits (max_samples_per_instance) required to sustain reliable transmission under network delay.

1. Experimental Setup

  • QoS Profile: Reliability = RELIABLE, History Kind = KEEP_ALL
  • Resource Limits: max_samples_per_instance (Variable: \(1 \sim N\))
  • Network Condition: packet loss 5%
  • Network Latency (RTT): 100ms, 200ms, 300ms, 400ms (Simulated via tc)
  • Publication Period (PP): 100ms (10Hz)

2. Test Scenario

  1. Connect two notebooks and verify the baseline RTT.
  2. Set the Publisher's History to KEEP_ALL to ensure all samples are subject to Resource Limits.
  3. Vary the RTT from 100ms to 400ms using network emulation tools.
  4. Decrease max_samples_per_instance until sample rejected or lost events occur.
  5. Record the minimum mpi value that ensures 100% successful delivery.

3. Experimental Observation

4. Empirical Conclusion

When using KEEP_ALL, the max_samples_per_instance (mpi) acts as the effective buffer size for the reliability protocol. If mpi is insufficient to hold all samples sent during one RTT (plus the time for ACK/NACK processing), the Publisher will either block or drop samples.

Rule 33

Justifies the minimum Lifespan duration required to ensure sample reception before expiration in reliable communication.

1. Experimental Setup

  • QoS Profile: Reliability = RELIABLE, Lifespan = Variable
  • Publication Period (PP): 10ms to 100ms
  • Lifespan Duration: 100ms to 1000ms
  • Total Samples: 10,000

2. Test Scenario

  1. Fix the total number of samples to be sent at 10,000.
  2. Perform a grid search by varying the Publish Period (PP) from 10ms to 100ms and Lifespan duration from 100ms to 1000ms.
  3. Measure the total number of samples successfully received at the Subscriber.
  4. Identify the threshold where sample reception starts to drop despite using RELIABLE QoS.

3. Experimental Observation

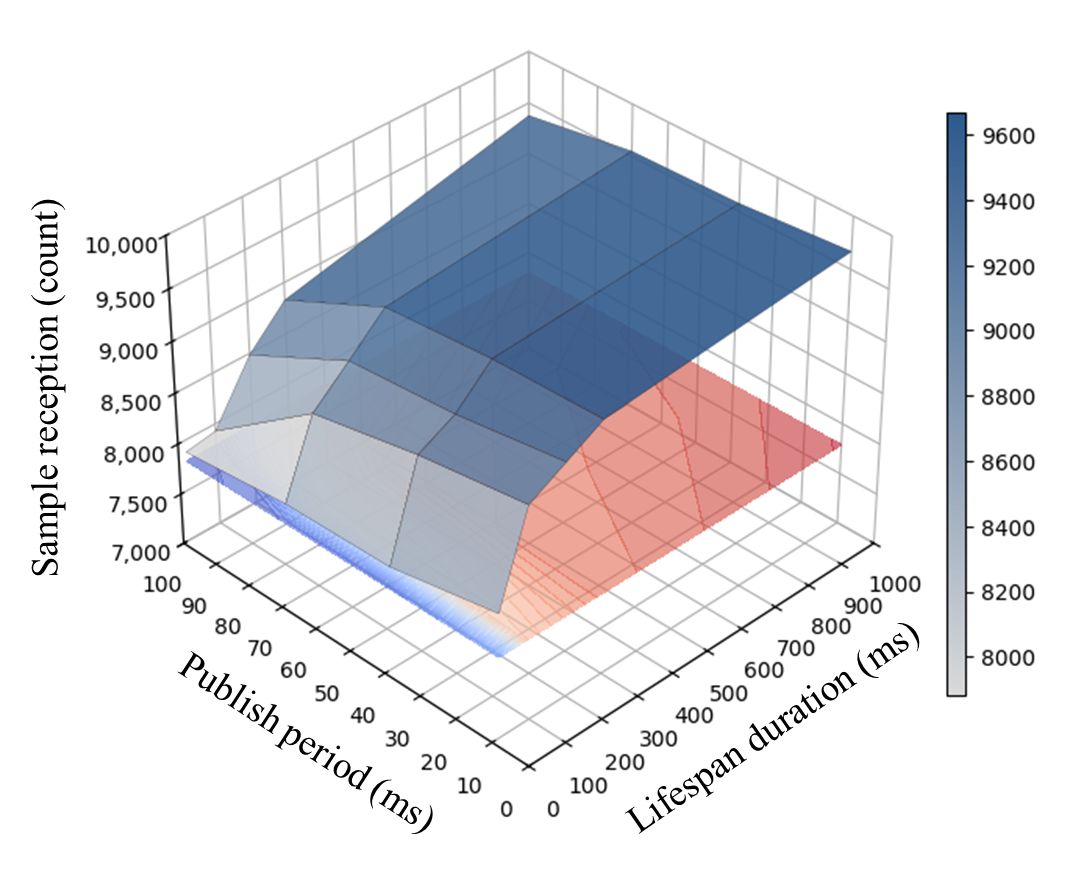

  • High Reception Zone (Blue): When Lifespan is sufficiently longer than RTT and PP, nearly all 10,000 samples are received.
  • Low Reception Zone (White/Gray): When Lifespan duration is close to or shorter than the round-trip retransmission time, samples expire before they can be successfully delivered or processed.

4. Empirical Conclusion

Even with RELIABLE settings, data loss occurs if the Lifespan duration is shorter than the time required for successful transmission and acknowledgement.

Rule 35

Justifies how Reliability settings impact Deadline compliance under packet loss conditions.

1. Experimental Setup

  • QoS Profile: Deadline Period = 150ms, Reliability = RELIABLE vs BEST_EFFORT
  • Network Condition (Loss): 5% Packet Loss (Simulated via tc)
  • Publication Period (PP): 100ms
  • Total Samples: 1,000

2. Test Scenario

  1. Set the Publisher and Subscriber with a Deadline period of 150ms.
  2. Introduce 5% packet loss to the network interface.
  3. Case A: Configure both entities with RELIABLE Reliability.
  4. Case B: Configure both entities with BEST_EFFORT Reliability.
  5. Publish 1,000 samples and monitor the on_requested_deadline_missed callback at the Subscriber.

3. Experimental Observation

Reliability Total Samples Received Samples Deadline Missed Count Cause of Violation
RELIABLE 1,000 1,000 25 Delay caused by Retransmission
BEST_EFFORT 1,000 ~950 48 Gap caused by Packet Loss

4. Empirical Conclusion

The experimental results highlight two different causes of Deadline violations: 1. In RELIABLE mode, all 1,000 samples were received, but 25 samples violated the Deadline because the time taken for NACK-based retransmission exceeded the 150ms window. 2. In BEST_EFFORT mode, violations nearly doubled (48 times) because lost packets created permanent gaps in the data stream, directly triggering the Deadline timer.

Rule 36

Justifies the consistency requirement between Liveliness Lease Duration and Deadline Period to avoid redundant or conflicting fault detections.

1. Experimental Setup

  • Publication Period (PP): 100ms
  • Deadline Period: 200ms
  • Total Samples: 600 (Total duration: 60s)
  • Liveliness Lease Duration: Variable

2. Test Scenario

The network condition is controlled over 60 seconds using the tc command:

  1. 0s ~ 20s (Loss 0%): Normal communication.
  2. 20s ~ 40s (Loss 10%): Induce occasional Deadline Missed due to retransmission delays.
  3. 40s ~ 45s (Loss 100%): Induce Liveliness Lost by blocking all packets.
  4. 45s ~ 60s (Loss 0%): Restore communication and observe recovery.

3. Experimental Observation & Empirical Conclusion

[ISSUE] Liveliness Lost is triggered prematurely (approx. 60~80ms). Even though the Publisher is already marked as 'Offline', Deadline Missed alarms continue to trigger late at the 200ms mark.

[Conclusion] The experiment demonstrates that when Lease Duration < Deadline, the system falls into a contradictory state: it continues to fire "Data Missing" alarms (Deadline Missed) for a Publisher that it has already declared "Dead" (Liveliness Lost).

To prevent this state inconsistency and ensure a logical fault-detection sequence (where the data stream is monitored within the lifespan of the entity), the Liveliness Lease Duration must always be longer than the Deadline Period: \(LIVENS.lease ≥ DEADLN.period\)

Rule 37

Justifies the impact of Resource Limits on the recovery latency for late-joining subscribers in durable communication.

1. Experimental Setup

  • QoS Profile: Durability = TRANSIENT_LOCAL, History = KEEP_ALL
  • Variable: max_samples_per_instance (mpi) ranging from 1,000 to 5,000
  • Data Volume: Sample count up to 1,600
  • Metric: Latency (ms) required for the system to reach steady-state convergence

2. Test Scenario

  1. Initialize a Publisher that sends samples continuously with TRANSIENT_LOCAL durability.
  2. After a specific number of samples are published, introduce a Late-Joining Subscriber.
  3. Vary the max_samples_per_instance setting on the Subscriber side.
  4. Measure the latency between the sample generation time and the time it is actually processed by the late-joiner.
  5. Observe how long the "catch-up" phase lasts before latency returns to normal levels.

3. Experimental Observation

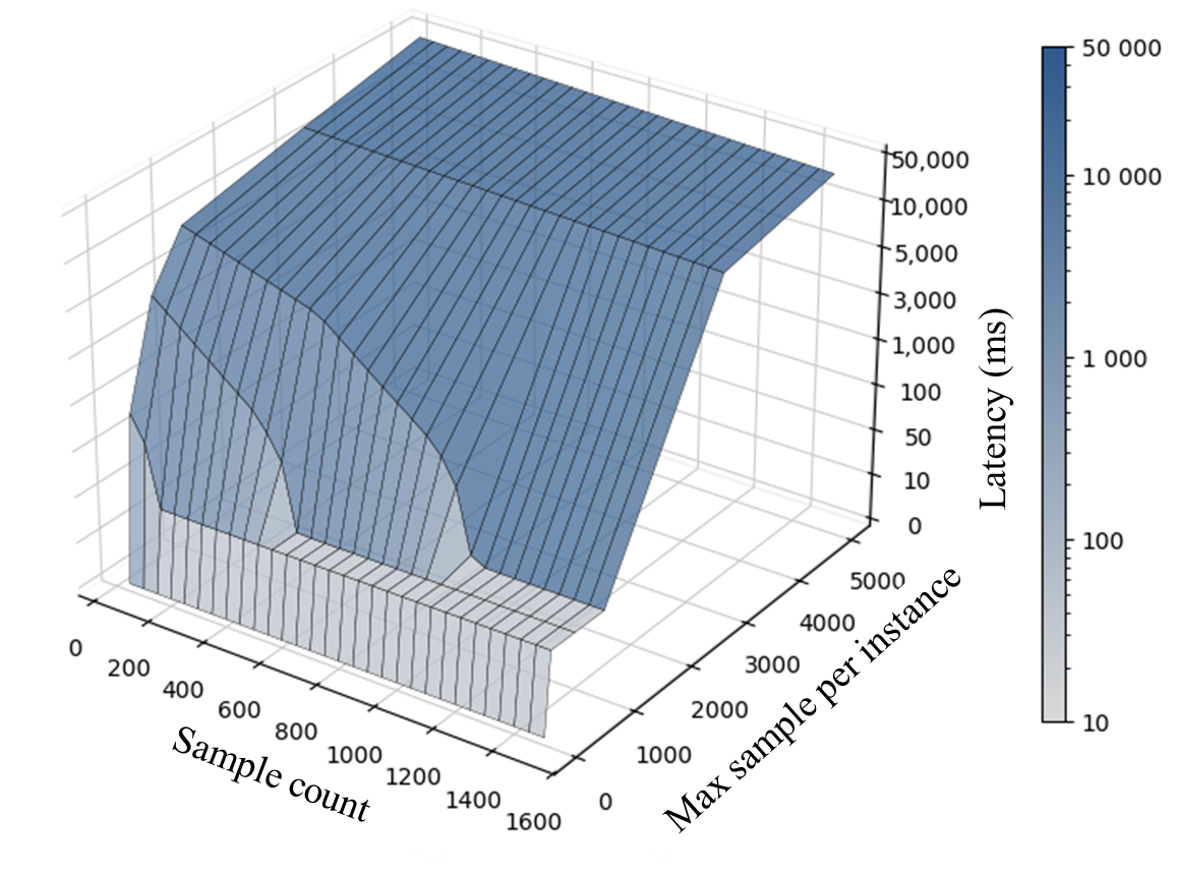

  • Low mpi Zone: Recovery is relatively fast
  • High mpi Zone: As max_samples_per_instance increases towards 5,000, the recovery latency increases exponentially (reaching up to 50,000ms). The system takes significantly longer to converge to a steady state.

4. Empirical Conclusion

The experiment proves that setting an excessively high max_samples_per_instance for the sake of data completeness leads to a "Recovery Latency Storm." For a late-joining node, processing thousands of buffered historical samples simultaneously saturates the available bandwidth and CPU, causing current data to be delayed by tens of seconds.

To balance data durability with system responsiveness, the resource limits must be tuned based on the expected maximum network downtime and the acceptable recovery window: \([DURABL ≥ TRAN_LOCAL] ∧ [KEEP_ALL] ⇒ mpi ≥ default\) (Note: \(default\) should be calculated based on the maximum tolerable recovery time.)

Rule 38

Justifies the minimum Deadline period required to maintain stable Ownership in exclusive communication under network instability.

1. Experimental Setup

  • QoS Profile: Ownership = EXCLUSIVE, Reliability = RELIABLE
  • Variable: Deadline Period (100ms vs 500ms)
  • Network Condition: 5% Packet Loss (Simulated via tc)
  • Publication Period (PP): 100ms
  • Total Samples: 400

2. Test Scenario

  1. Configure two Publishers with different strengths for EXCLUSIVE ownership.
  2. Set both Publishers and the Subscriber to RELIABLE reliability to ensure eventual delivery.
  3. Introduce a constant 5% packet loss using the tc command.
  4. Case A: Set the Deadline period to 100ms (equal to the PP).
  5. Case B: Set the Deadline period to 500ms (\(5 × PP\)).
  6. Monitor the on_requested_deadline_missed callback and track how often the active owner is switched due to deadline timeouts.

3. Experimental Observation

  • Case A (Deadline = 100ms - Orange): Numerous spikes are observed throughout the experiment. Any minor retransmission delay caused by the 5% loss immediately triggers a deadline miss, leading to unstable ownership.
  • Case B (Deadline = 500ms - Blue): Significantly fewer and more sparse spikes appear. The larger window provides sufficient time for the RELIABLE protocol to recover lost packets through NACK/retransmission before the 500ms timer expires, maintaining a more consistent owner state.

4. Empirical Conclusion

The experiment clearly demonstrates that Ownership Stability is highly dependent on the Deadline period in lossy networks. A tight deadline (Case A) causes "Ownership Churning," where control is frequently and unnecessarily handed over due to transient network jitters.

By extending the Deadline (Case B), the system becomes more resilient to packet loss, ensuring that the primary owner remains active as long as retransmissions are successful within the extended margin. To ensure stable control in exclusive ownership, the Deadline should be at least twice the Publication Period: \([OWNST = EXCLUSIVE] ⇒ DEADLN.period ≥ 2 × PP\)

Rule 39

Justifies the impact of Liveliness Lease Duration on Ownership stability by preventing premature entity failure detection.

1. Experimental Setup

  • QoS Profile: Ownership = EXCLUSIVE, Liveliness = AUTOMATIC
  • Variable (Lease Duration): 50ms, 100ms, 300ms, 500ms, 800ms
  • Network Condition: 80% Packet Loss (Simulated via tc)
  • Publication Period (PP): 100ms
  • Metric: Total count of Liveliness Lost events

2. Test Scenario

  1. Initialize two Publishers with different strengths for EXCLUSIVE ownership.
  2. Apply a harsh network environment with 80% packet loss using the tc command.
  3. Publish a total of 10,000 samples to observe long-term stability.
  4. Vary the Liveliness Lease Duration from 50ms to 800ms.
  5. Record the frequency of ownership handovers triggered by on_liveliness_changed at the Subscriber side.

3. Experimental Observation

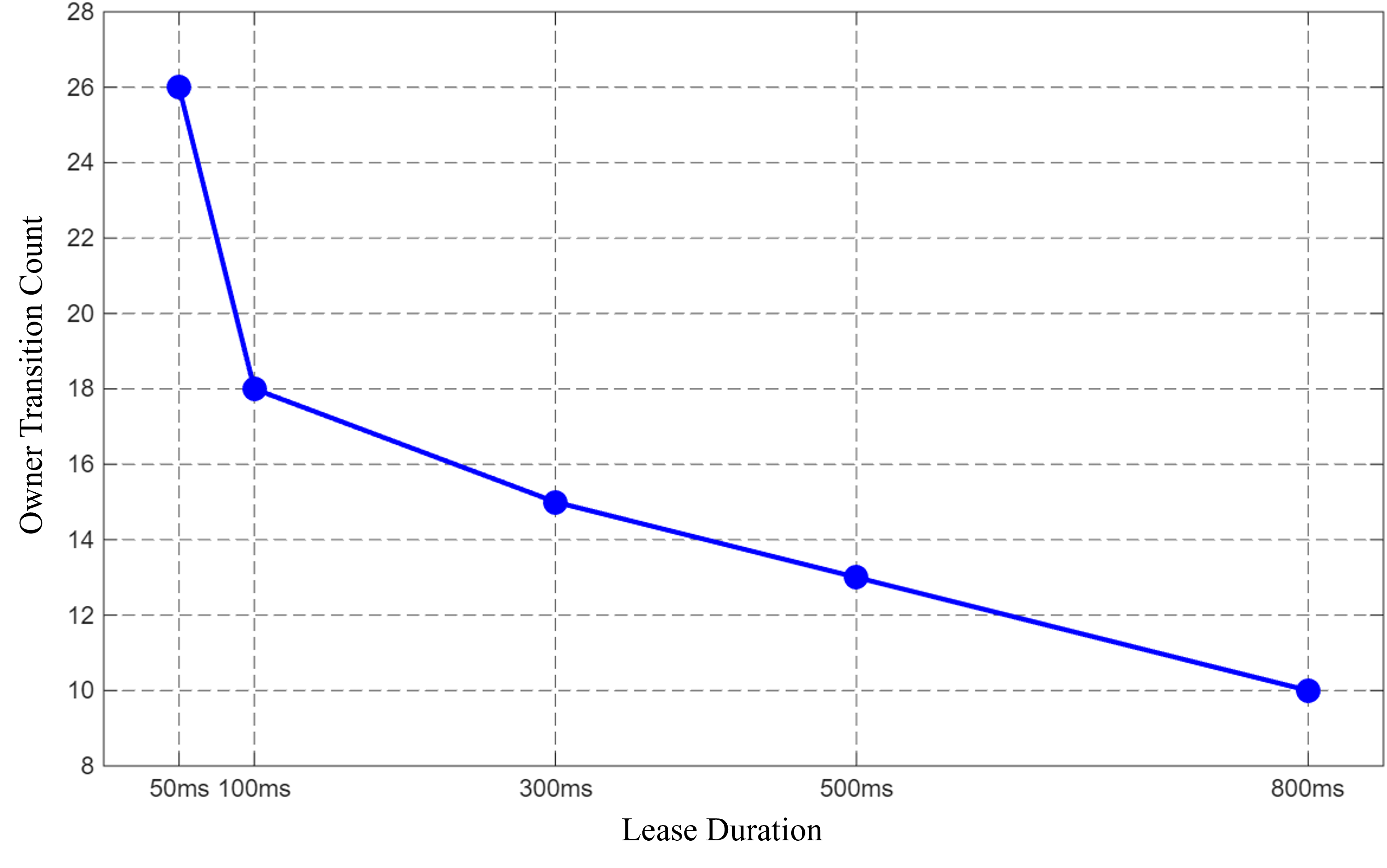

  • Short Lease Duration (50ms - 100ms): A high frequency of Liveliness Lost events is observed (up to 26 times). Since the lease duration is shorter than or equal to the Publication Period (100ms), even a single delayed heartbeat triggers a failure detection.
  • Long Lease Duration (300ms - 800ms): The event count drops significantly as the lease duration increases. At 800ms, only 10 events occur, indicating that the system can tolerate multiple lost or delayed heartbeats without dropping the ownership.

4. Empirical Conclusion

The experiment highlights the risk of "False Positive Failures." When the Liveliness Lease Duration is too aggressive (close to the \(PP\)), transient network issues cause the Subscriber to frequently revoke ownership from the primary Publisher. This leads to unstable system control and unnecessary handovers.

To maintain a stable Ownership state, the Liveliness Lease Duration must be set with enough margin to accommodate at least two consecutive heartbeat losses or retransmission delays: \([OWNST = EXCLUSIVE] ⇒ lease_duration ≥ 2 × PP\)
